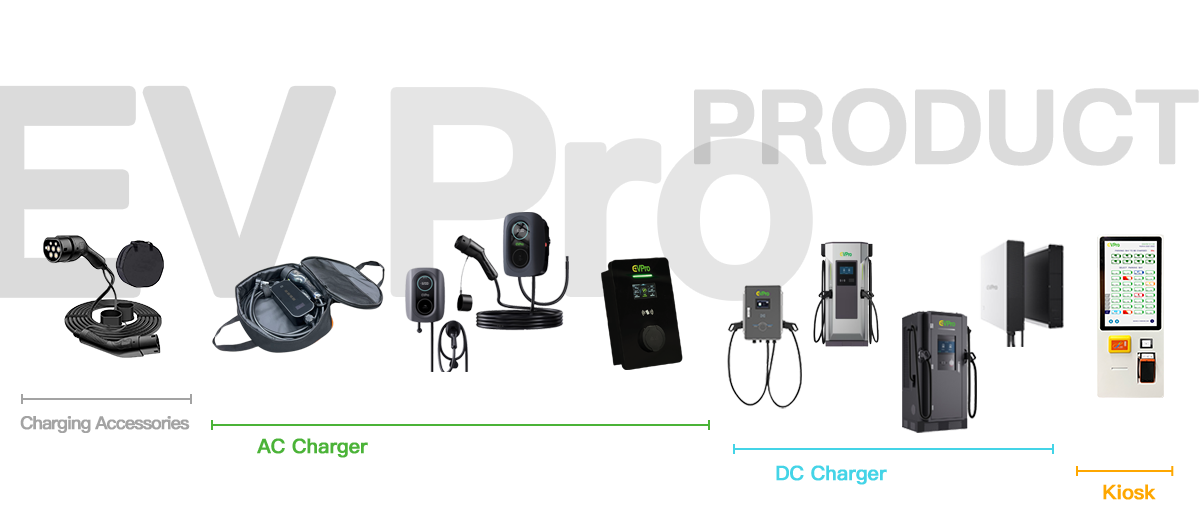

Charging Accessories

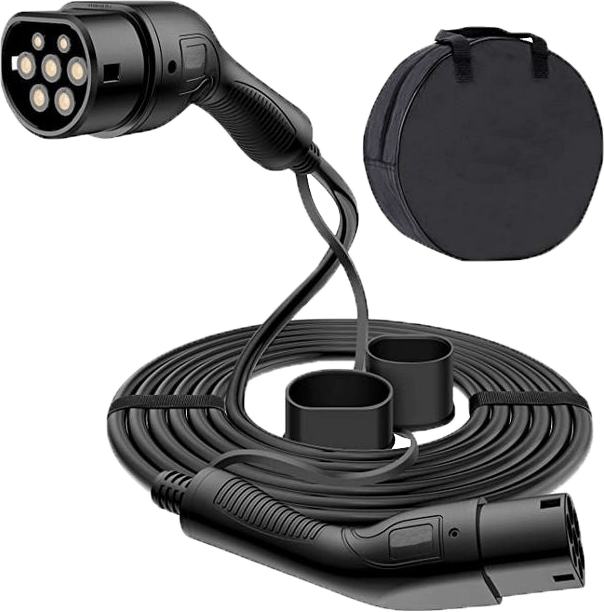

Electric Vehicle charging cable

Type 2 (Mains-end) to Type 2 (Vehicle-end)

3 Phase / 22kW

5M

Waterproof Level: IP55

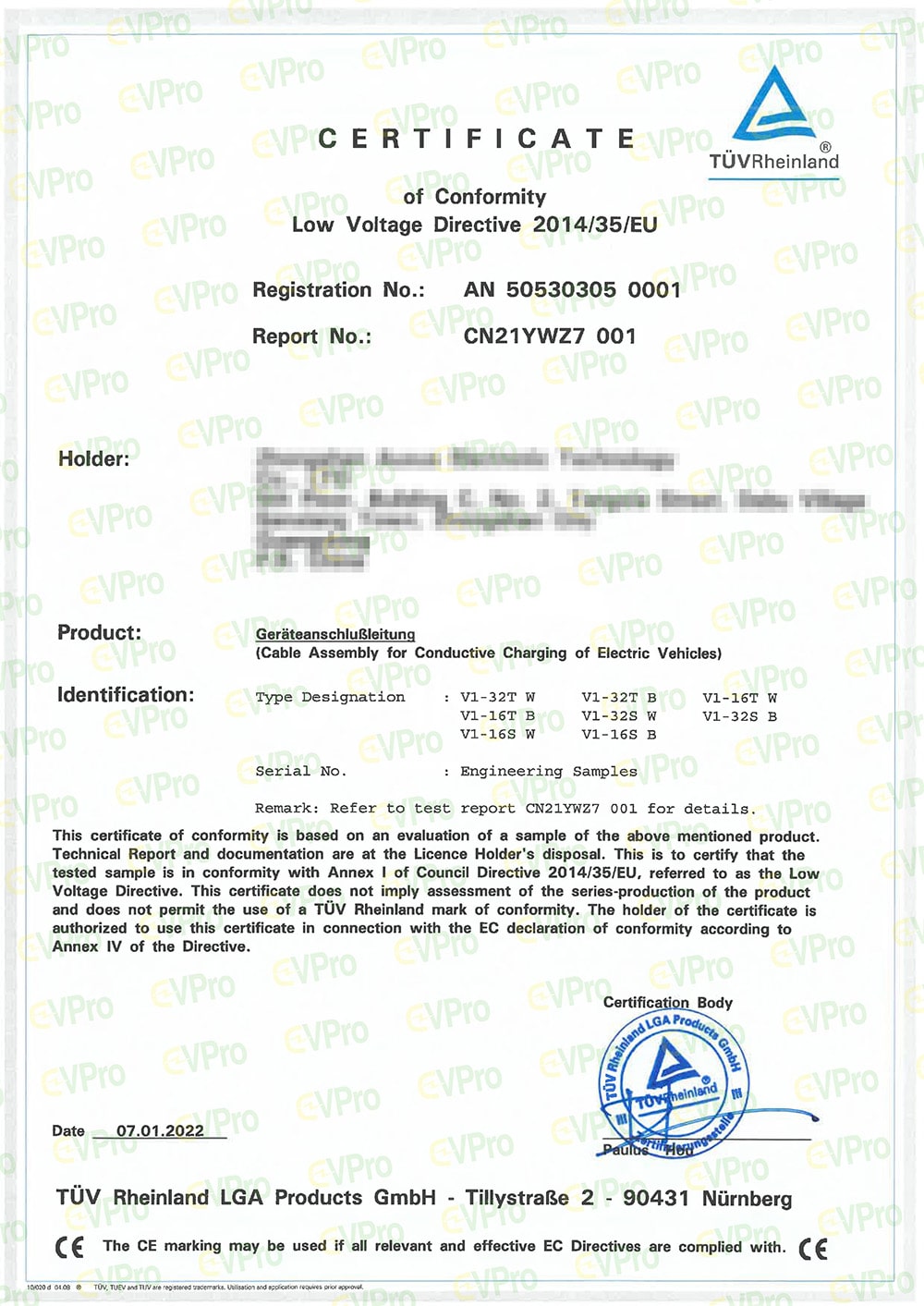

TUV Rheinland's Certificate

View CE Cert TUV EV Charging Cable Auxus

AC Charger

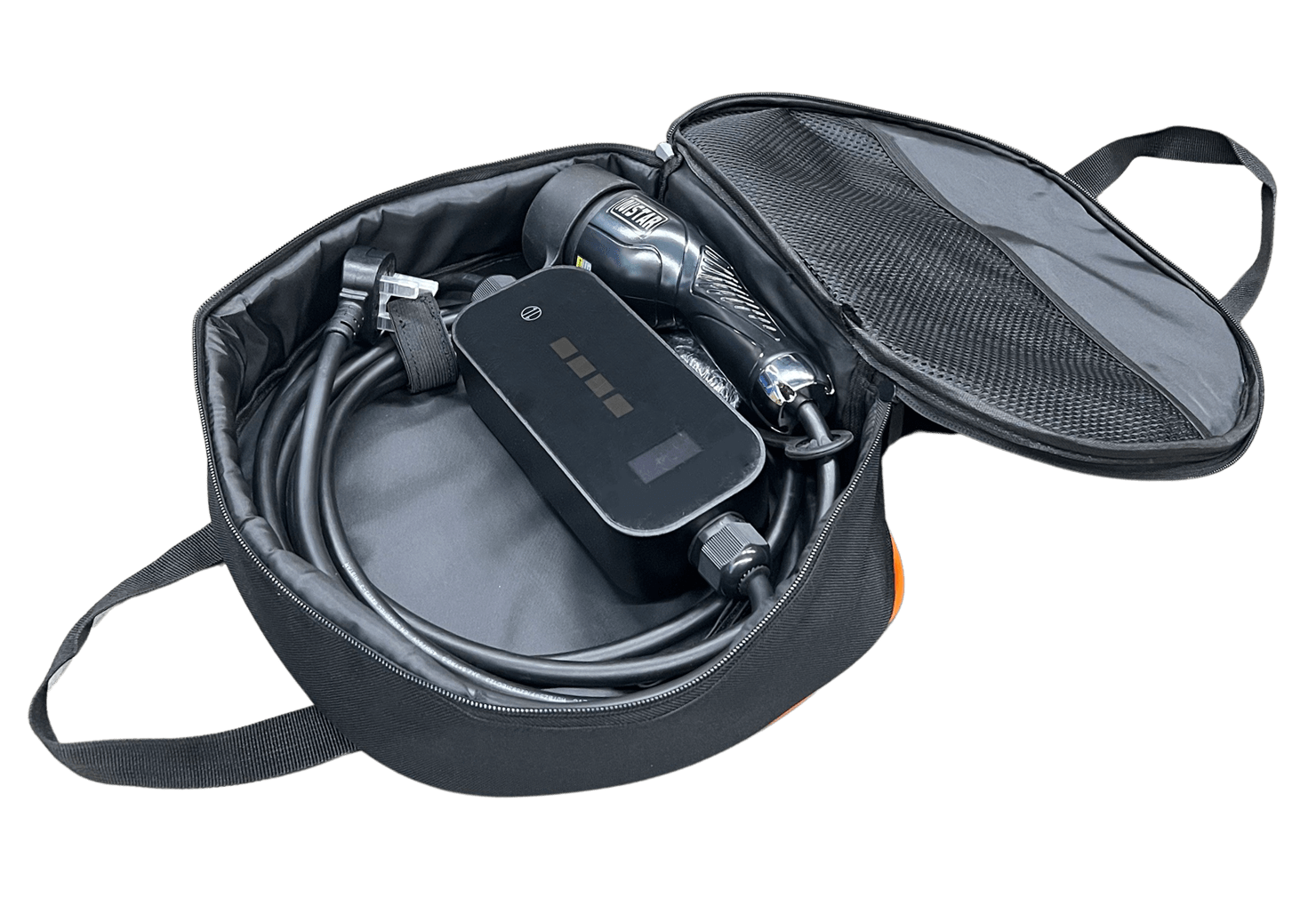

Portable EV Charger(Aluminum housing temperature control upgraded version)

Temperature sensor automatically adjusts 3 types of current output 13A, 10A, 8A

13A (Mains-end) to Type2 (Vehicle-end)

Pushbutton control and LED display Pushbutton control and LED display

5M

TUV Rheinland's Certificate

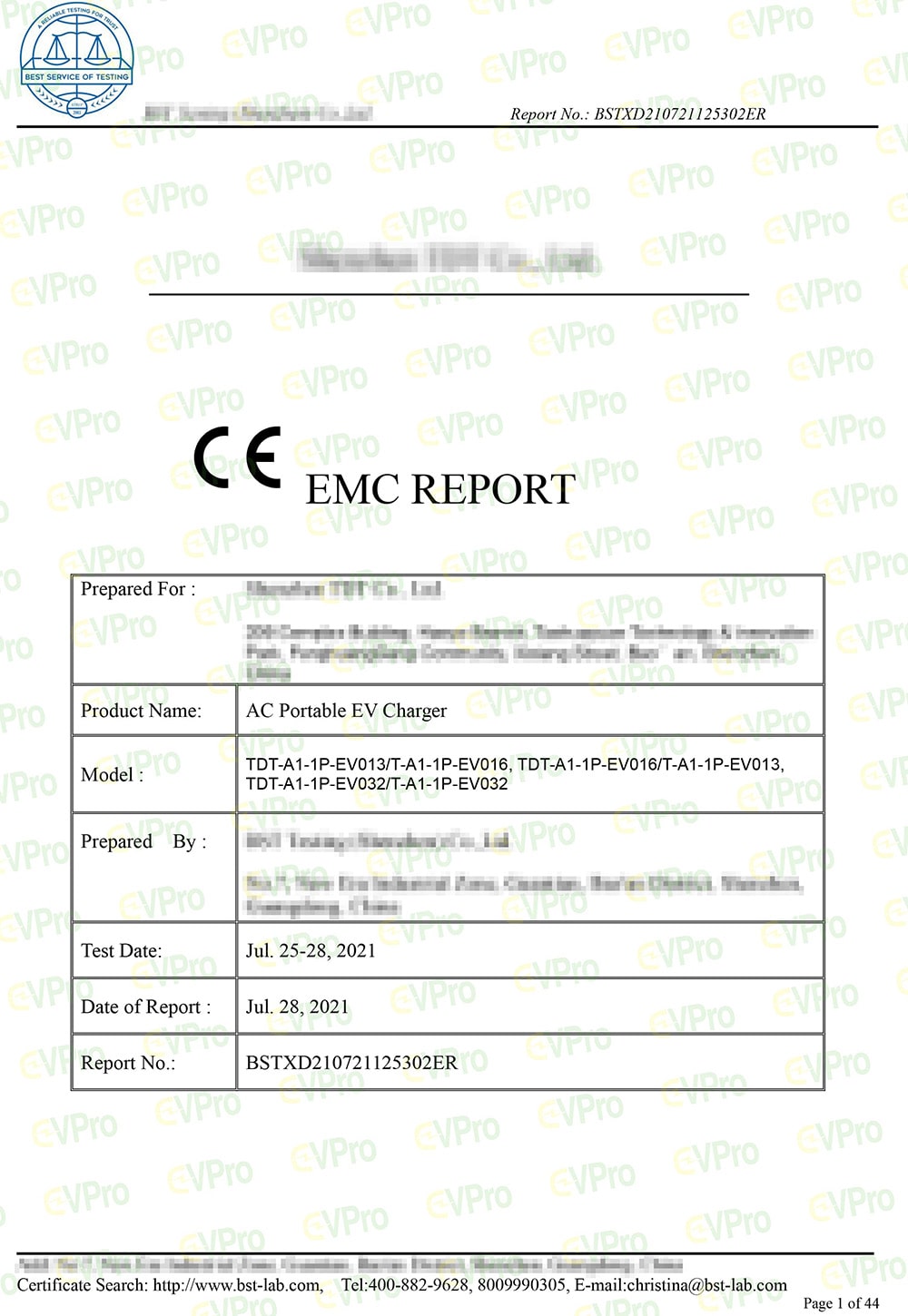

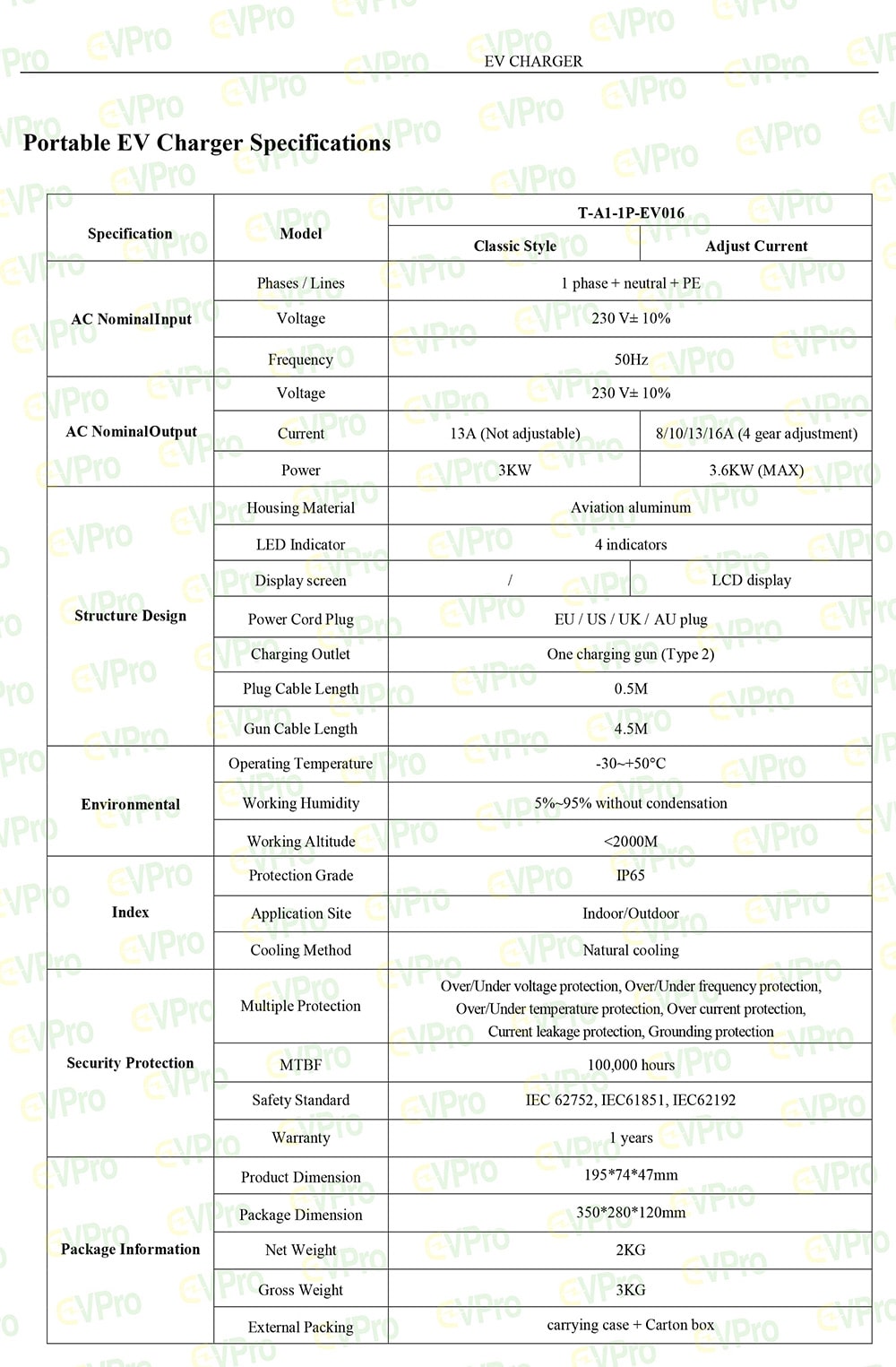

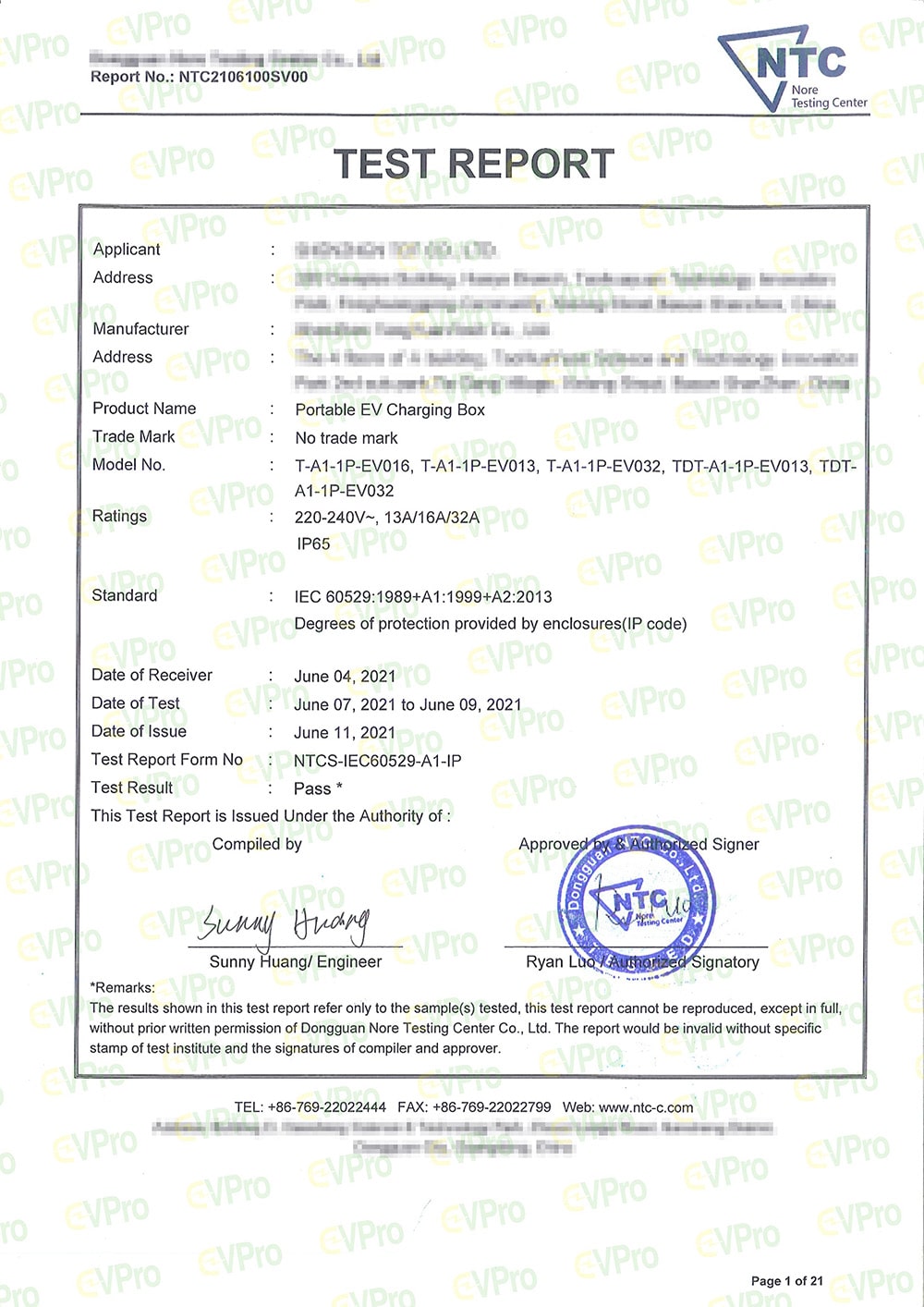

View 3.6KW A1 Portable EV Charger View Portable EV Charger EMC Report 61000-6-3 View Portable EV charger CE certificate View Portable EV Charger EN 61851-1-22 LVD report View Portable EV CHARGING BOX T-A1-1P-EV016 IP65 Test Report View WTD22F04060222G IK10---Portable ev charger

Portable EV Charger(Aluminum housing temperature control upgraded version)

Temperature sensor automatically adjusts 3 types of current output 13A, 10A, 8A

13A (Mains-end) to Type2 (Vehicle-end)

Pushbutton control and LED display Pushbutton control and LED display

5M

TUV Rheinland's Certificate

View 3.6KW A1 Portable EV Charger View Portable EV Charger EMC Report 61000-6-3 View Portable EV charger CE certificate View Portable EV Charger EN 61851-1-22 LVD report View Portable EV CHARGING BOX T-A1-1P-EV016 IP65 Test Report View WTD22F04060222G IK10---Portable ev charger

ECO AC WALLBOX EV AC Charger

Innovative and Minimalist design

Support 7kW/11kW/22kW different charging power

Impact protection level: IK08

Waterproof level: IP54

Type A RCD + DC6mA leakage protection

Support IEC 62196 Type2/ CCS2 EV plug

Certificate: IEC 62196、IEC 61851

View WTD22F04060227G IK10 View ECO AC WALLBOX EV AC Charger Parameter

ECO AC WALLBOX EV AC Charger

	Item	Technology Index	Remarks
Electrical Parameters	Rated Input Voltage	AC380V	3 Phase
	Max. Power	22KW
	Rated Working Current	32A	6mm² wires
	Input Frequency	50HZ
	Rated Output Voltage	AC380V	3 phase
	Rated Output Current	32A	6mm² wires
	Standby Power	< 6W
Environment index	Application Scenes	Indoor/Outdoor
	Working Temperature	-30℃~+55℃
	Working Humidity	5%~95% without Condensation
	Working Elevation	< 2000m
	Protection Grade	IP54
	Cooling Method	Natural Cooling
	MTBF	50,000 Hours
Shell structure	Material	ABS+PC
	Dimension	(W)211mm x (H)345mm x (D)122mm
	Installations	Wall-mounted / standing pole	Default: Wall-mounted
	Net. Weight	3.0kg	Type 2 with socket
	Net. Weight	5.3kg	Type 2 with gun (5m)
Optional	Activate Method	1. Plug and Play 2. ON/OFF by swiping card (3pcs) 3. Offline payment via swiping card	Optional
	Output Port	1. Type 2 socket 2. Type 2 gun with 5M cable	Optional
	Current Adjustable	8A/16A/24A/32A Current switching(32A default)	Optional
Security design	Over/under voltage protection, Overload protection, Short-circuit protection, Current leakage protection(Type A+DC 6mA Optional), Grounding protection, Lightning protection

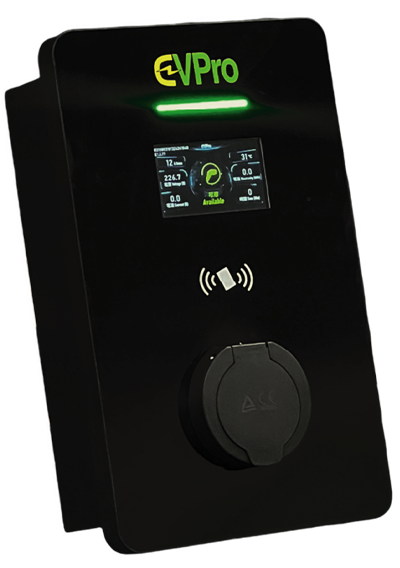

SMART AC WALLBOX EV AC Charger

Innovative and intelligent design

Support 3.6kW/7kW/11kW/22kW different charging power

Impact protection level: IK08

Waterproof level: IP54

Type A RCD + DC6mA leakage protection

Support IEC Type2/ CCS2 EV plug

Support IEC Type2 charger plug

Support Load Balance System

Build in 4.3 inch or above color display screen
Show dynamic QR code on screen

LED light status indication

Support RFID card

Support WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196、IEC 61851

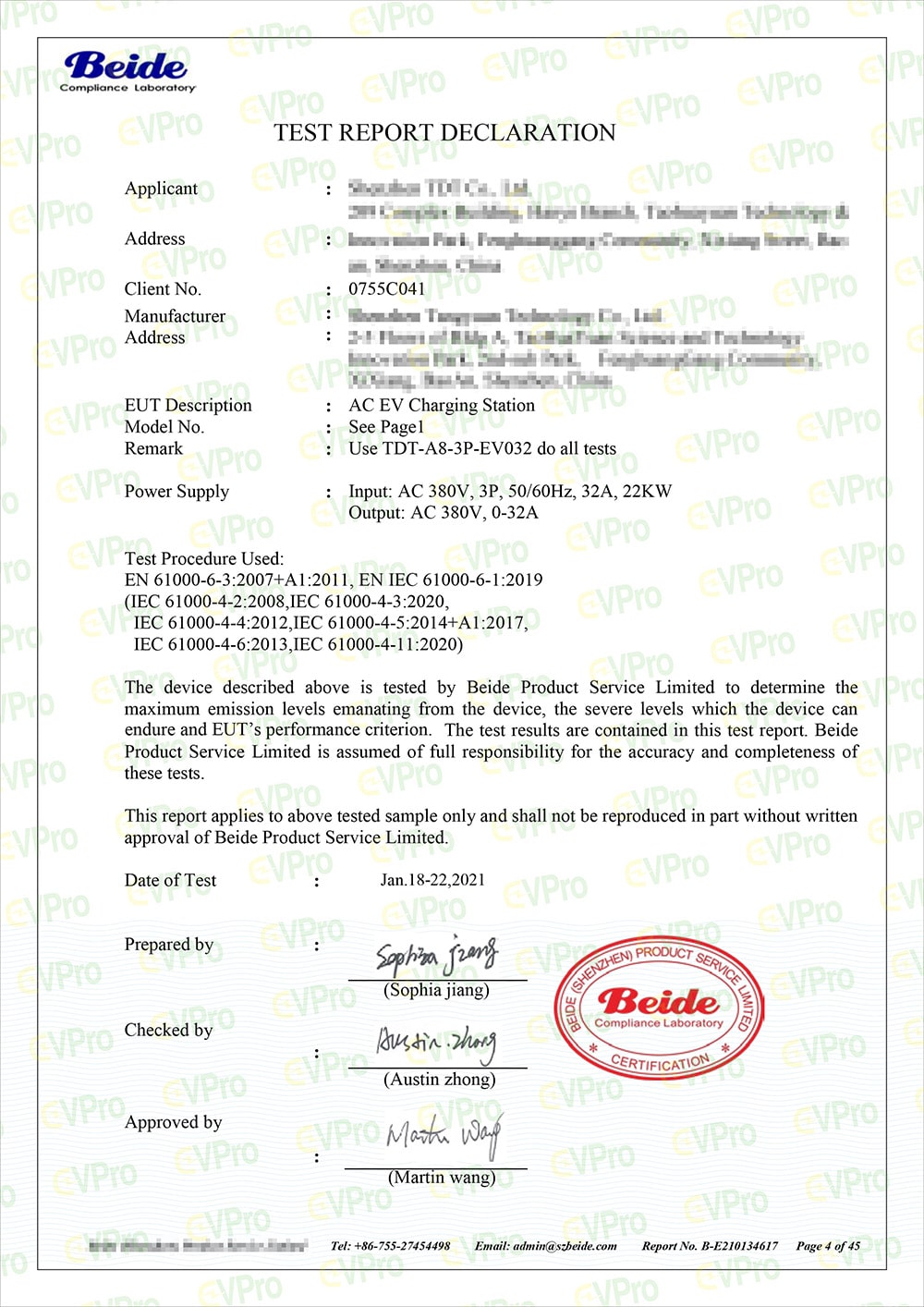

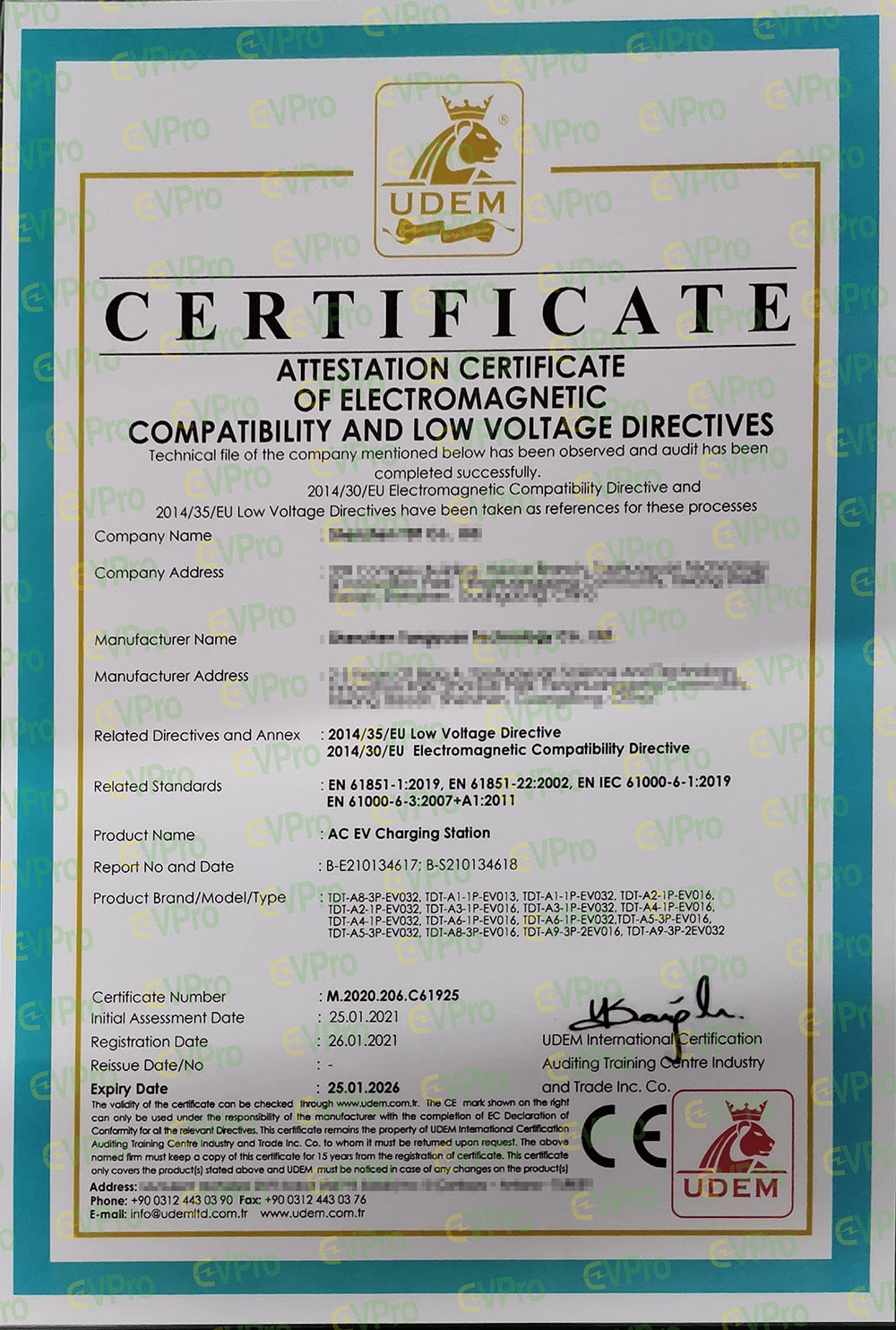

View CE wallbox View B-E210134617 View SMART AC WALLBOX EV AC Charger Parameter

SMART AC WALLBOX EV AC Charger

Innovative and intelligent design

Support 3.6kW/7kW/11kW/22kW different charging power

Impact protection level: IK08

Waterproof level: IP54

Type A RCD + DC6mA leakage protection

Support IEC Type2/ CCS2 EV plug

Support IEC Type2 charger plug

Support Load Balance System

Build in 4.3 inch or above color display screen
Show dynamic QR code on screen

LED light status indication

Support RFID card

Support WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196、IEC 61851

View CE wallbox View B-E210134617 View SMART AC WALLBOX EV AC Charger Parameter

SMART AC WALLBOX EV AC Charger

	Item	Technology Index	Remarks
Charging Parameter	Phase Support	Single and 3 Phase
	Rate Input Voltage Support	220V AC (Single Phase) 380V AC (3 Phase)
	Charging Power Support	3.6kW, 7.4kW, 11kW, 21.2kW
	Charging Mode	Mode 3 (per IEC61851-1:2010)
	Charging communication protocol standard	IEC61851-22
	Charging plug & socket outlet standard	IEC62196
	Charging Plug Type	IEC62196-2 Type 2
	Interface Protocol	OCPP1.6
Electrical Parameters	Max. Rated Input Voltage	AC380V	3 Phase
	Max. Power	22KW
	Rated Working Current	32A	6mm² wires
	Input Frequency	50Hz
	Rated Output Voltage	AC380V	3 phase
	Rated Output Current	32A	6mm² wires
	Standby Power	< 6W
Environment index	Application Scenes	Indoor/Outdoor
	Working Temperature	-30℃~+55℃
	Working Humidity	5%~95% without Condensation
	Working Elevation	< 2000m
	Protection Grade	IP54
	Cooling Method	Natural Cooling
	MTBF	50,000 Hours
Shell structure	Material	Metal
	Dimension	(W)250mm * (H)350mm * (D)150mm
	Installations	Wall-mounted / standing pole	Default: Wall-mounted
	Net. Weight	3.5kg	Type 2 with socket
	Net. Weight	5.8kg	Type 2 with gun (5m)
Charging Indication	LED	Blinking Green: Available Blue: Ready for charging Green: Charging Red: Out of Service
Optional	Activate Method	1. Plug and Play	Optional
		2. ON/OFF by swiping card (3pcs)
		3. Offline payment via swiping card
	Output Port	1. Type 2 socket	Optional
	Output Port	2. Type 2 gun with 5M cable	Optional
	Current Adjustable	8A/16A/24A/32A Current switching(32A default)	Optional
Security design	Over/under voltage protection, Overload protection, Short-circuit protection, Current leakage protection(Type A+DC 6mA Optional), Grounding protection, Lightning protection

DC Charger

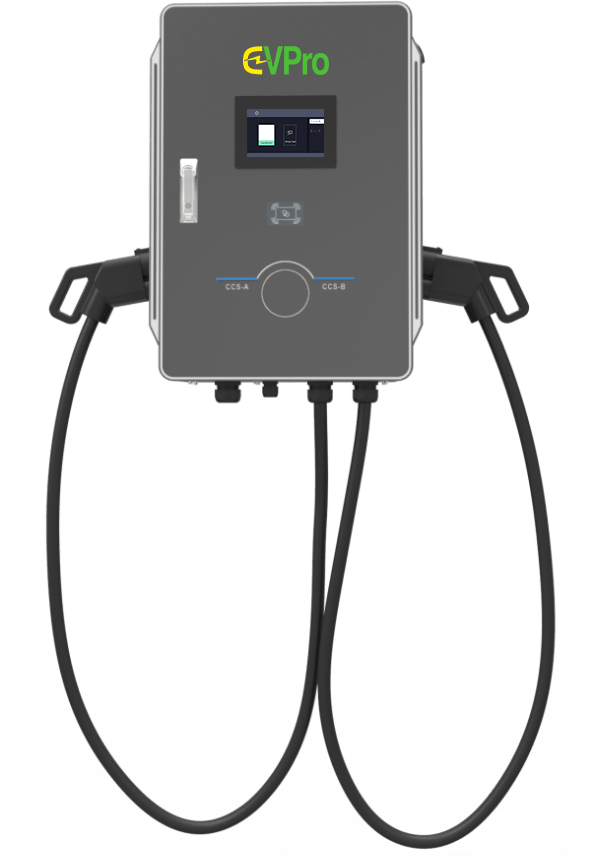

EVPRO 4300 Wall mount EV DC Charger

Innovative and intelligent design

Support 40kW charging power

Efficiency > 95.2%

Power Factor > 0.98(50% ~ 100% load)

iTHD < 5%

Waterproof level: IP54

Type A RCD leakage protection

Support IEC CCS2 EV plug

Support Single or Dual charging gun

Dual charging support two EV charge at a same time

Support Load Balance System

7” LCD Touch Screen, High brightness LED light

Support RFID card/APP/Kiosk

Support 3G/4G, WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196、IEC 61851、EN55011、EN55022、IEC61000、TR25

Fire hazard alert

Auto put out fire inside cabinet

View EVPRO 4300 Wall mount EV DC Charger Parameter

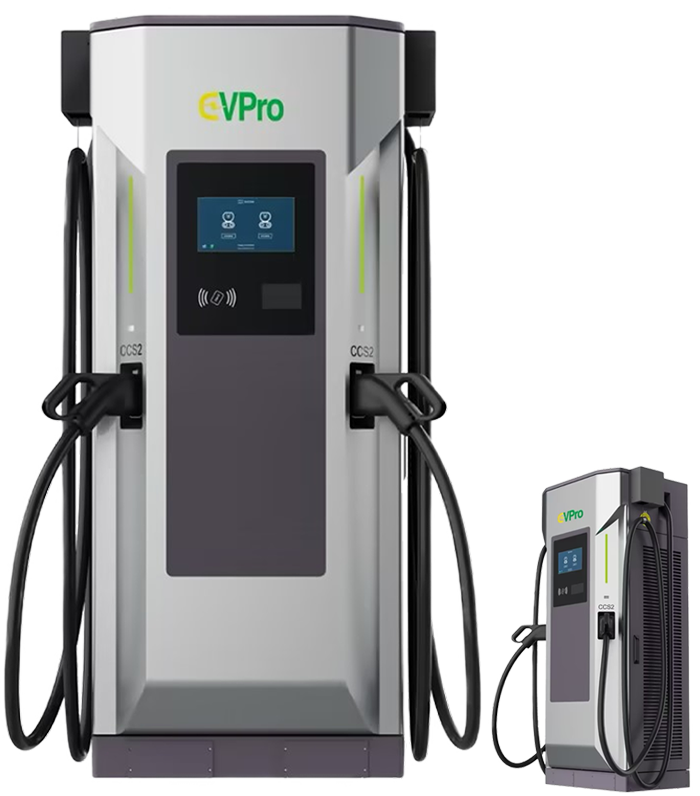

EVPRO 8300 Series Floor type EV DC Charger

Innovative and intelligent design

Support 20kW-180kW different charging power

Waterproof level: IP54

Type A RCD leakage protection

Support IEC CCS2/CHAdeMO/GBT(L/R)

Support Single or Dual charging gun

Dual charging support two EV charge at a same time

Support Load Balance System

10” LCD Touch Screen, High brightness LED light

Support RFID/APP/Kiosk/Credit Card/Octopus

Support 4G/5G, WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196-2、IEC 61851

Fire hazard alert

Auto put out fire inside cabinet

View EVPRO 8300 Series Floor type EV DC Charger Specication

EVPRO 8300 Series Floor type EV DC Charger

Innovative and intelligent design

Support 20kW-180kW different charging power

Waterproof level: IP54

Type A RCD leakage protection

Support IEC CCS2/CHAdeMO/GBT(L/R)

Support Single or Dual charging gun

Dual charging support two EV charge at a same time

Support Load Balance System

10” LCD Touch Screen, High brightness LED light

Support RFID/APP/Kiosk/Credit Card/Octopus

Support 4G/5G, WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196-2、IEC 61851

Fire hazard alert

Auto put out fire inside cabinet

View EVPRO 8300 Series Floor type EV DC Charger Specication

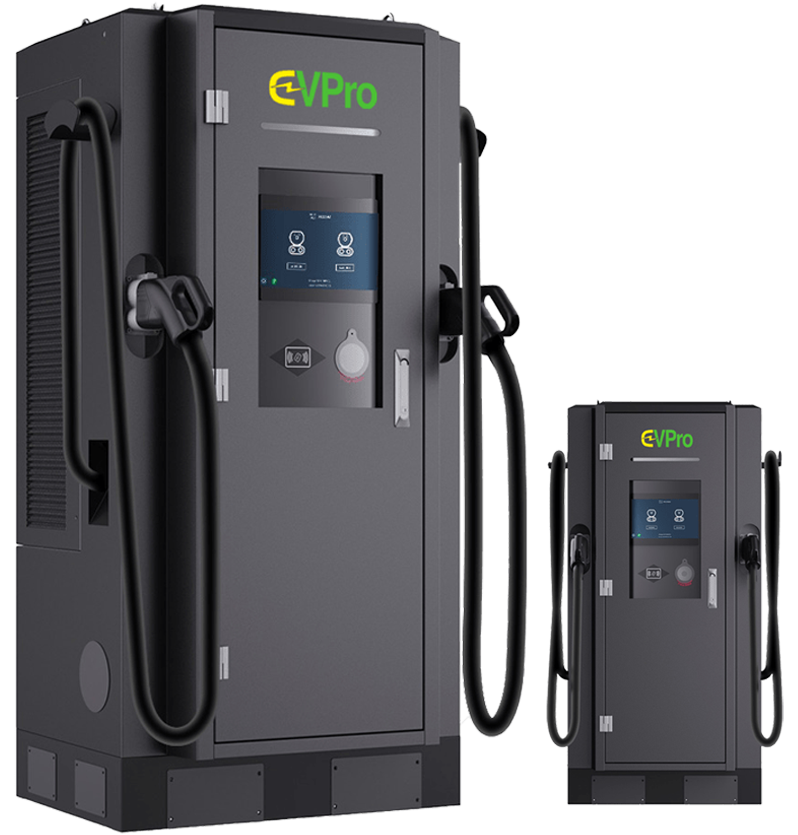

EVPRO OX8500 Series Floor type EV DC Charger

Innovative and intelligent design

Support 20kW-360kW different charging power

Waterproof level: IP54

Type A RCD leakage protection

Support IEC CCS2/CHAdeMO/GBT(L/R)

Support Single or Dual charging gun

Dual charging support two EV charge at a same time

Support Load Balance System

10” LCD Touch Screen, High brightness LED light

Support RFID/APP/Kiosk/Credit Card/Octopus

Support 4G/5G, WiFi, Ethernet Connection

Support OCPP 1.6J

Certificate: IEC 62196-2、IEC 61851

Fire hazard alert

Auto put out fire inside cabinet

View EVPRO OX8500 Series Floor type EV DC Charger Specication

Kiosk

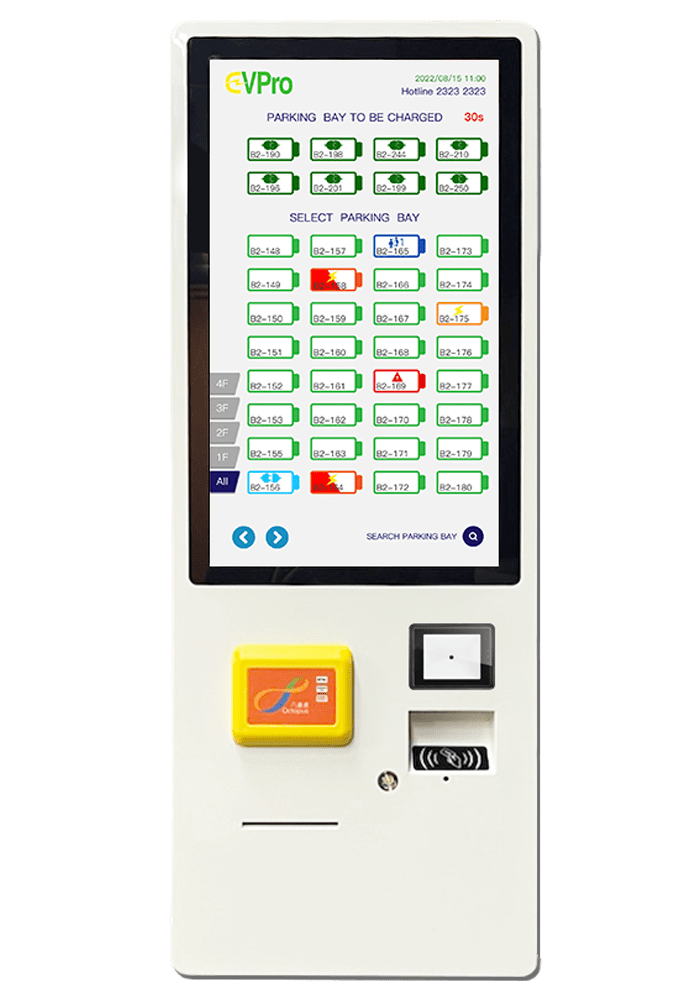

EV Charge Self-served Kiosk

Ultra-thin body design

Stainless Steel Casing to against extreme outdoor weather

Support wall mount and pole stand

Size: 38CM (W) x 88CM (H) x 12CM (D)

Support 24”/27”/32” multi-touch LCD display

High brightness LCD screen so as the display work properly under the sunlight

Tempered Glass display screen protection

Waterproof level IP54

Support major electronic payment method in the market, included: Octopus, Visa, Master, UnionPay, AliPayHK, AliPay, WeChat Pay, WeChat Pay, FPS, Apple Pay, Samsung Pay, Google Pay, etc.

Octopus certificated service integrator

Intel i3/i5/i7 CPU

8GB/16GB RAM

128BG/256GB/512GB/1TB SSD harddisk

80mm thermal paper receipt

Support control multiple EV chargers

Simple to use and user friendly UI/UX

Support Ethernet and WiFi network connection

Settle the bill started by mobile app or website by scan bill QR code

View EV Charge Self-served Kiosk Parameter

EV Charge Self-served Kiosk

Ultra-thin body design

Stainless Steel Casing to against extreme outdoor weather

Support wall mount and pole stand

Size: 38CM (W) x 88CM (H) x 12CM (D)

Support 24”/27”/32” multi-touch LCD display

High brightness LCD screen so as the display work properly under the sunlight

Tempered Glass display screen protection

Waterproof level IP54

Support major electronic payment method in the market, included: Octopus, Visa, Master, UnionPay, AliPayHK, AliPay, WeChat Pay, WeChat Pay, FPS, Apple Pay, Samsung Pay, Google Pay, etc.

Octopus certificated service integrator

Intel i3/i5/i7 CPU

8GB/16GB RAM

128BG/256GB/512GB/1TB SSD harddisk

80mm thermal paper receipt

Support control multiple EV chargers

Simple to use and user friendly UI/UX

Support Ethernet and WiFi network connection

Settle the bill started by mobile app or website by scan bill QR code

View EV Charge Self-served Kiosk Parameter

System

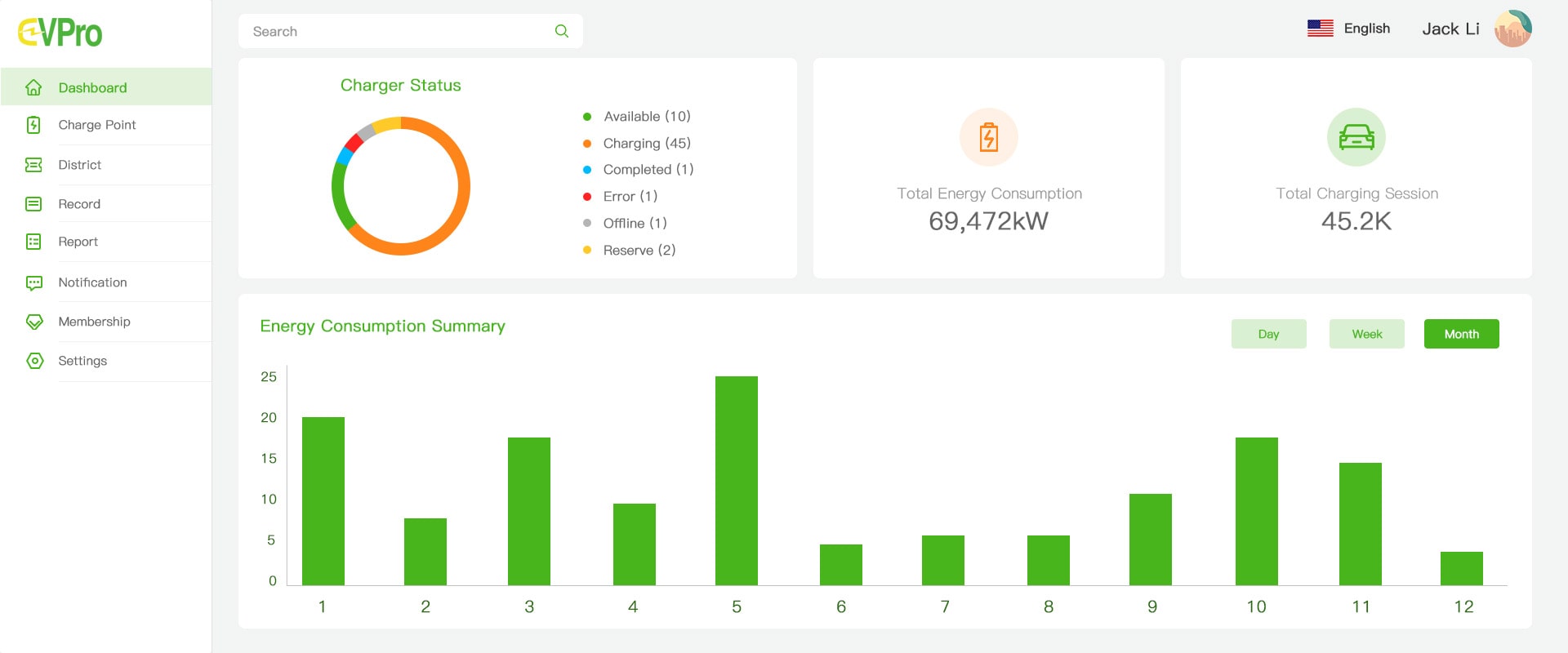

EV Charge Monitoring System

View chargers’ real-time status

Monitor real-time energy consumption

Each Chargers Energy Consumption Report

Each Chargers Usage Report

Each Charger Idle Report

Each Charger Usage Analytic Report

Comprehensive Power Consumption Report

Comprehensive Charger Usage Report

Comprehensive Charger Idle Report

Comprehensive Usage Analytic Report

Charging Session Details

Zone Management

DC charger fire hazard alert

EV Charge Monitoring System

View chargers’ real-time status

Monitor real-time energy consumption

Each Chargers Energy Consumption Report

Each Chargers Usage Report

Each Charger Idle Report

Each Charger Usage Analytic Report

Comprehensive Power Consumption Report

Comprehensive Charger Usage Report

Comprehensive Charger Idle Report

Comprehensive Usage Analytic Report

Charging Session Details

Zone Management

DC charger fire hazard alert

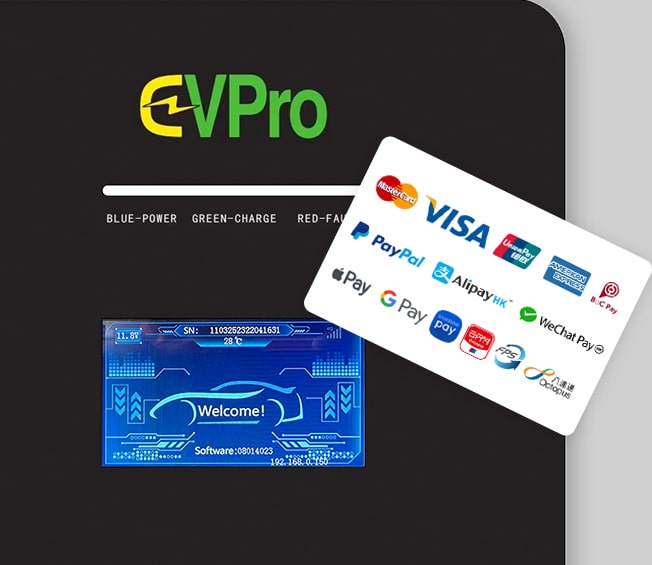

EV Charger Payment System

Integrated with self-served payment kiosk

Easy to control chargers and payment collection

Support pays for charging duration and energy consumption

Support pre-paid and post-paid mode

Support topup charging

Support members only charging mode

Support peak and off-peak charging scheme

Support penalty for charging space occupied collection

Charging price configuration

Maximum charging session duration configuration

Auto upload Octopus payment record and blacklist download

Payment transaction report

Each charger payment received report

Comprehensive payment received report

EV Charger Payment System

Integrated with self-served payment kiosk

Easy to control chargers and payment collection

Support pays for charging duration and energy consumption

Support pre-paid and post-paid mode

Support topup charging

Support members only charging mode

Support peak and off-peak charging scheme

Support penalty for charging space occupied collection

Charging price configuration

Maximum charging session duration configuration

Auto upload Octopus payment record and blacklist download

Payment transaction report

Each charger payment received report

Comprehensive payment received report

Charger Load Balance System

Continuously monitor the change of power consumption and automatically distribute the available power to different devices

Adjust the charging output of electric vehicles according to changes to prevent overload

Uniform distribution of available power is helpful to optimize the charging network of electric vehicles

Charge the electric vehicle in the most efficient way

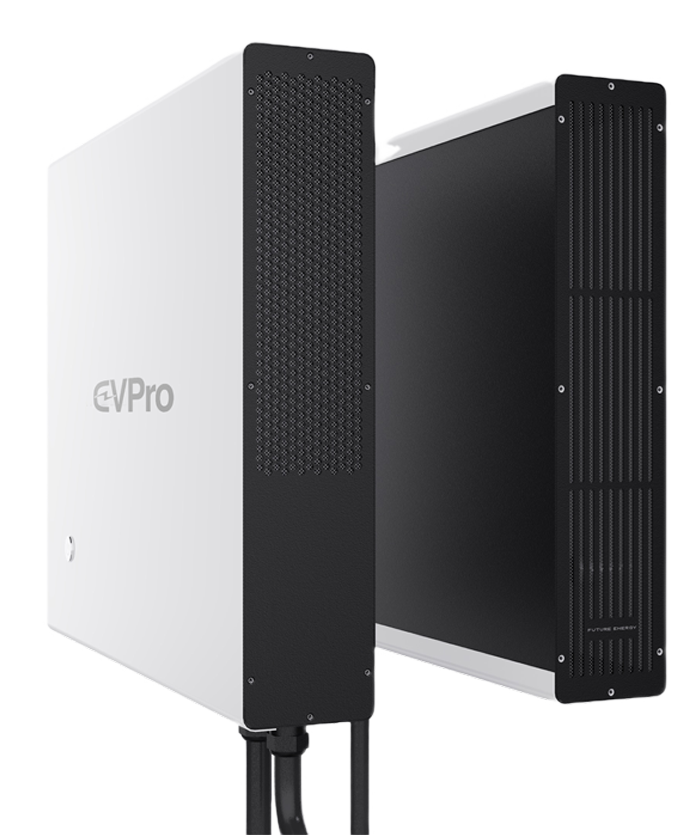

Name	EVPRO 4300 Wall mount EV DC Charger
Size（mm）	782mm X 600mm X 267.5mm
Weight（KG）	85KG
Screen Material	LCD
Shell Material	Sheet Metal
Charging Outlet	CCS 2
AC Input
System	3P+N+PE
Voltage	AC 380V
Current	≤63A
Frequency	45～65HZ
DC Output
Voltage	DC 150V～1000V
Current	100A
Power	20kW - 40kW
Voltage stabilization accuracy	＜±0.5%
Current stabilization accuracy	≤±1％（Output load 20％～100％ Rated range）
Power factor	≥0.95 @20％～50％Full load output power ≥0.98 @50％～100％Full load output power ≥0.99 @100％Full load output power, Nominal input voltage and frequency
Efficiency	≥95.2％，@750V，50％～100％Load current, under rated three-phase input voltage
IP Degree of protection	IP54
Operating ambient temperature	-25℃～50℃
Relative humidity	＜95％
Altitude	≤2000 meters，Derating for use above 2000 meters
Cooling mode	Forced air cooling
Remote monitoring mode	Ethernet / WiFi / 3G / 4G
Startup mode	RFID/APP/Kiosk
Standby power	25W
Charging standard	IEC-62196-2;EN61851
Installation method	Wall mounted / Floor mounted
authentication	CE
Metering accuracy	0.5
Safety protection function
Input Overvoltage Protection	484-500Vac
Input undervoltage protection	260-276Vac
Output overvoltage protection	484-500Vac
Over temperature protection	Derating above 50 ℃; 75 ℃ protection shutdown
Short circuit protection	Yes
Emergency stop protection	Yes
Leakage protection	Type A
Lightning protection	Level 2 lightning protection standard

Power Input	Phases / Lines	3 phase + neutral + PE
	Voltage	AC 400 V ± 10%
	Frequency	50/60Hz
Power Output	Charging Outlet	CCS 2/CHAdeMO/GBT (L/R)
	Voltage (DC)	200~1000V
	Current (Max)	30A-300A
	Power (Max)	20kW - 180kW
	Charging mode	Simultaneously
Origin	China
Main Parameter	Cable Length	Standard: 5m(L)/ 5m(R); Option: 6~10m
	Dimension(WDH)	7605501900mm
	Weight	≤330KG
	LED Indicator	Yes
	HMI	10.1"in Color touch screen
	Payment mode	RFID/APP/Kiosk/Credit Card/Octopus
	Energy meter	MID standard
	Efficiency	> 95%
	Power Factor	>0.98(50% ~ 100% load)
	Harmonics	iTHD < 5%
	MCCB	overload, short circuit, undervoltage protection, and residual current protection
	Emergency button	Yes
	Balancer	Yes
Communication	Charger v.s. EV	PLC (DIN 70121: 2014-12/ ISO15118)
	Communication Protocol	OCPP 1.6J
	Network interface	4G/5G/WiFi/Ethernet
Environment al Index	Operation Temperature	-30 °C ~ +60 °C
	Working Humidity	5%~95% without condensation
	Working Altitude	< 2000M
	Protection Grade	IP54
	Application Scene	Indoor/Outdoor
	Cooling Method	Air-blast cooling
	Noise	< 60dB
Safety Protection	Multiple Protection	Over/Under voltage protection, Overload protection, short circuit protection, Over temperature protection, Grounding protection, Surge protection, Fire hazard alert, Auto put out fire inside cabinet
Certification	CE/TR25	CE marking: complies with IEC 62196-2, IEC 61851

Power Input	Phases / Lines	3 phase + neutral + PE
	Voltage	AC 400 V ± 10%
	Frequency	50/60Hz
Power Output	Charging Outlet	CCS 2/CHAdeMO/GBT (L/R)
	Voltage (DC)	200~1000V
	Current (Max)	30A-550A
	Power (Max)	20kW - 360kW
	Charging mode	Simultaneously
Origin	China
Main Parameter	Cable Length	Standard: 5m(L)/ 5m(R); Option: 6~10m
	Dimension(WDH)	8006502000mm
	Weight	≤650KG
	LED Indicator	Yes
	HMI	10.1"in Color touch screen
	Payment mode	RFID/APP/Kiosk/Credit Card/Octopus
	Energy meter	MID standard
	Efficiency	> 95%
	Power Factor	>0.98(50% ~ 100% load)
	Harmonics	iTHD < 5%
	MCCB	overload, short circuit, undervoltage protection, and residual current protection
	Emergency button	Yes
	Balancer	Yes
Communication	Charger v.s. EV	PLC (DIN 70121: 2014-12/ ISO15118)
	Communication Protocol	OCPP 1.6J
	Network interface	4G/5G/WiFi/Ethernet
Environment al Index	Operation Temperature	-30 °C ~ +60 °C
	Working Humidity	5%~95% without condensation
	Working Altitude	< 2000M
	Protection Grade	IP54
	Application Scene	Indoor/Outdoor
	Cooling Method	Air-blast cooling
	Noise	< 60dB
Safety Protection	Multiple Protection	Over/Under voltage protection, Overload protection, short circuit protection, Over temperature protection, Grounding protection, Surge protection, Fire hazard alert, Auto put out fire inside cabinet
Certification	CE/TR25	CE marking: complies with IEC 62196-2, IEC 61851

LCD Display Specification
Display size	24/27/32"
Resolution	1920*1080
Display color	16.7m
Contrast	5000:1
Brightness	300 cd/m2
Visual angle	H:180°,V:180°
Display scale	16:09
Ports
USB interface	2 × USB2.0, 2 × USB3.0
COM interface	RS232, 4W485
LAN internet interface	RJ45
Touch Screen Specification
Induction technology	Capacitance screen
Touch points	10 point touch
Induced object	Finger
Touch accuracy	Less than 1.5mm(Central area), Less than 2.0mm(Marginal area)
Resolution	32767 × 32767
Life time	More than 60,000,000, clicks
Screen Protective Glass	3mm tempered glass
Thermal Printer
Paper size	80mm
Lock	Front cover lock for paper replacement
Indicator Light	Working LED light Error LER light
Power Comsumption
Supply voltage	AC100-240V 50/60Hz
Power(W)	Less than 150W
Standby power	1W
Environmental Specification
Working temperature	-10 ~ 60 degrees
Working humidity	10% ~ 85%
Storage temperature	-20 ~ 70 degrees
Storage humidity	5% ~ 95%
Supported Payment

Electric Vehicle charging cable Buy Now

Portable EV Charger(Aluminum housing temperature control upgraded version) Buy Now Video Tutorial

Portable EV Charger(Aluminum housing temperature control upgraded version) Buy Now Video Tutorial

ECO AC WALLBOX EV AC ChargerFrom HK$4300

SMART AC WALLBOX EV AC Charger

SMART AC WALLBOX EV AC Charger

EVPRO 4300 Wall mount EV DC Charger

EVPRO 8300 Series Floor type EV DC Charger

EVPRO 8300 Series Floor type EV DC Charger

EVPRO OX8500 Series Floor type EV DC Charger

EV Charge Self-served Kiosk

EV Charge Self-served Kiosk

EV Charge Monitoring System

EV Charge Monitoring System

EV Charger Payment System

EV Charger Payment System

Charger Load Balance System

Electric Vehicle charging cable

Portable EV Charger(Aluminum housing temperature control upgraded version)

Portable EV Charger(Aluminum housing temperature control upgraded version)

ECO AC WALLBOX EV AC Charger
